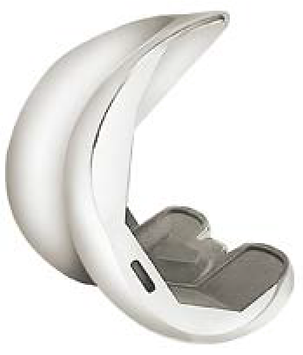

Femoral Condylar
-
A3 fix bearing knee system is to provide sufficient articular surface and proper patella tracking as well as rotational freedom to accommodate deep knee flexion up to 145 degree
-
12 Femoral sizes and 13 tibial sizes provide the best fitting combination
-
Ingenuity curvature design makes sure that any sizes of femoral condylar and tibial insert matches with each other
-
Deep and extended patella groove improves the patella trackability
-
Bolt-locking mechanism gives loosening zero chance.
Features
-
A3 Patella
-
A3 Femoral Condylar
A3 GT Personalized Total Knee System
Features
-
Both CR and PS knee available;
-
Open intercondylar design on CR and PS condylar reduces bone resection
-
Anatomical tibial tray compatible with both CR and PS insert
-
Anatomical prosthesis best adjustable to human body for all races in the world
-
Precise, simple, practical and user-friendly instruments dedicated for surgeons.
-
A3 GT PS Tibial Insert
-
A3 GT Tibial Tray
AFK Fixed-bearing Unicompartmental Knee
Features
-
Extended posterior condyle facilitates prosthetic rollback and can achieve 155° high flexion
-
Flat insert against the spherical surface of the femoral condyle brings unrestricted joint movement
-
Highly cross-linked polyethylene achieves lower wear
-
New locking mechanism ensures tibial insert fixation and reduces back wear
-
Multiple tray sizes for maximum bone coverage
-
Reduces risk of tray loosening with fixation wings and columns
-
AFK Femoral Condylar
-
AFK Tibial Insert
-
AFK Tibial Tray

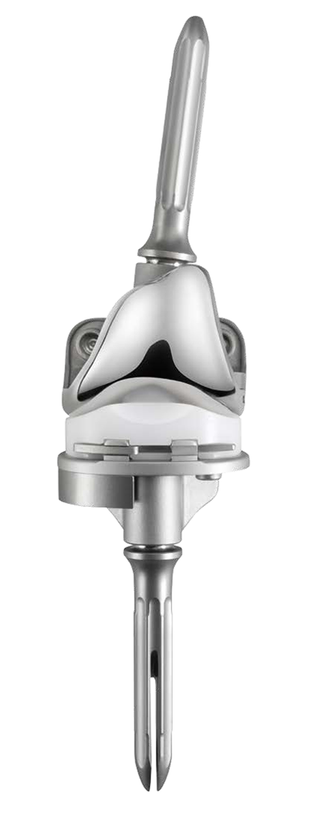

ACCK Revision Knee System
Features
-
High flexion up to 145 degree
-
Bolt-Locking mechanism gives loosening zero chances.
-
Intraoperative flexibility with cylinder and offset extension stem;
-
Individual femoral and tibial augments with two different thicknesses;
-
Ingenuity curvature design make sure any size of femoral implant fits with any size of tibial insert;
-
ACCK Femoral Condylar
-
ACCK Tibial Tray
-
ACCK Tibial Insert
-
ACCK Extension Stem
Distal FemoralAugment
Posterior Femoral Augment
Tibial Augment (Half Block)
AK-ML-TH Femoral Stem
Features
-
Proximal Coating: Titanium Plasma Spray + HA Coating;
-
Tapered Wedge design provides firm mediolateral stability within the femoral canal;
-
Both 127o and 132o of Neck Shaft Angle are available;
-
24 sizes full length stem available in full profile and reduced distal options;
-
Polished Anterior-Posterior Neck Flats increase ROM by geometrically reducing the potential for impingement of the neck with the cup;
-
Flat Tapered Wedge Geometry Enhances proximal offloading and bone preservation and provides for rotational stability;
-
Reduced Distal Transition Enhances implant fit in femoral canals with a proximal distal mismatch

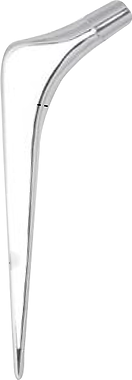

CPII Cemented Femoral Stem
Features
-
Double tapered stem design helps to create radial compressive loading ;
-
Additional stability and support for distal femoral defects;
-
Increasing compression and reducing shear at the bone/cement and implant/cement interfaces;
-
Polished surface helps to reduce friction between the cement and the implant reducing potential for third body wear;
-
Collarless neck helps to facilitate adjustments, allow intraoperative leg length adjustment aided by reference points on both the stem and the rasp.
ACP and ACP Long Cemented Femoral Stems
Features
-
Double-taper design philosophy provides natural compressive forces to help ensure that the implant is firmly seated and wedged within the cement mantle;
-
Polished surface designed to work in conjunction with taper geometry to enhance stem stability;
-
Polished, tapered design intended to stabilize through controlled subsidence in the first 12 to 24 months.
AK-AC-II-TP Acetabular Cup
Features
-
AK-AC-II-TP system is a two pieces component design that is assembled during surgery;
-
The shells utilize the innerchange locking mechanism. This unique locking mechanism helps provide a secure interface between the polyethylene insert and shell;
-
The shell is also suitable for both HXLPE and Ceramic Liner.

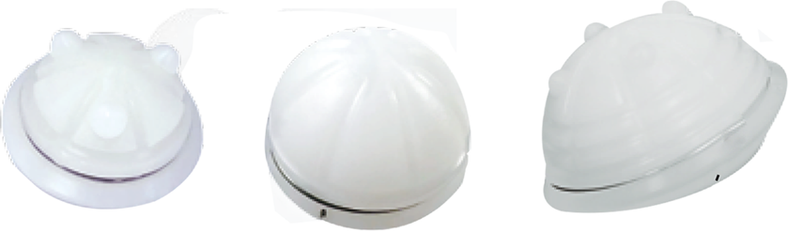

AK-L-II-Liner
Features
-
Both highly cross-linked Polyethylene and UHMWPE are available;
-
The liners are designed to lock into the shell by means of a circumferential ring that engages the shell’s mating groove;
-
Rotational stability may be achieved when the shell’s anti-rotational barbs interlock with the insert’s scallops
CPII Acetabular Cup
Features
-
UHMWPE
-
Monoblock cutting;
-
10 degree high wall design prevents dislocation during motion
AK-Bipolar
Features
-
Co-Cr-Mo Alloy Cup and UHMWPE Liner;
-
Patent locking mechanism ensures easy femoral head installation and prevents dislocation.

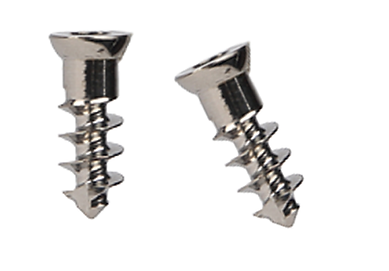

Acetabular Cup Screw
Features
-
It is made of Ti-Alloy;
-
Various sizes for different needs

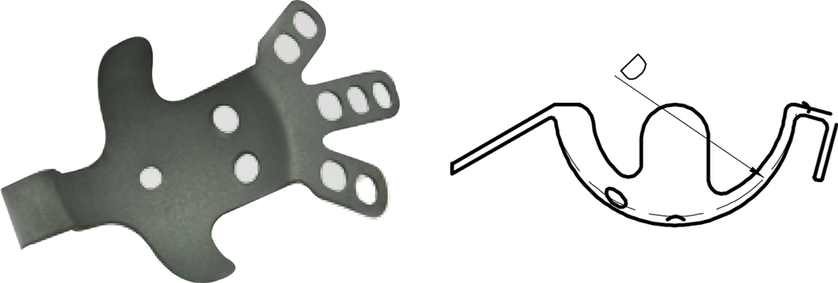

Acetabular Cage
Features
-
Pure titanium is extremely pliable, making it easy to use. The rough-blasted bone-facing surface offers excellent compatibility and enhances bone ongrowth;
-
The relative position and orientation of the flanges match the anatomy of the pelvis, so the flanges require less time- consuming adaptation;
-
The optimized position and orientation of the screw holes bring the screws in line with the direction of the force applied for secure initial and long-term stability. The large number of screw holes allows the surgeon to choose the most reliable fixation option;
-
Inferior narrowing of the cage’s posterior rim means that intact bone of the posterior acetabular rim can be preserved;
-
The slim, pointed, upwardly curved inferior flange is designed specially for the modern technique of impacting the implant into the os ischium. Its lower placement offers optimal positioning of the center of rotation.
